VidCAD Room Designer (Sheet Sets) Overview

Putting together a drawing set is a major part of most design projects. VidCAD Room Designer is an enhanced and automated version of AutoCADs Sheet Set Manager, which is used to organize multiple drawing files into a single Room or Sheet Set. This automated process of managing drawing sets allows you to easily create title sheets, table of contents, manage title blocks, and also allows you to quickly prepare your drawing sets for distribution and plotting.

The Rooms (Sheet Sets) created using VidCAD Room Designer will use highly customized VidCAD Templates for the creation of each sheet, or drawing. Drawing Template (.DWT) files can be customized to include your company logo, preferred layout size, and other design settings.

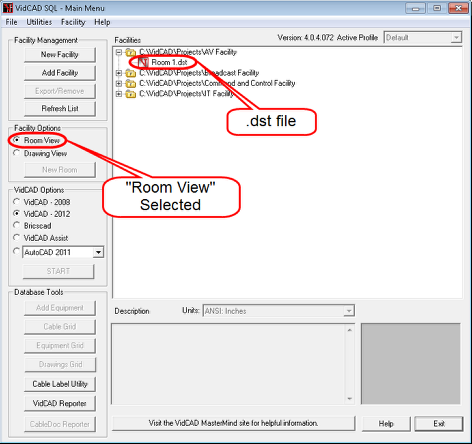

VidCAD Room Designer creates a room with a “.dst” extension. By default, the VidCAD Main Menu will display .dst (rooms) instead of .dwg (drawing) files. Drawing (.dwg) files will be created directly from the Room (Sheet Set).

Note: The terms “Room” “Sheet Set” and “Sheet Set Manager” are used interchangeably in this manual.
