Restore Redline

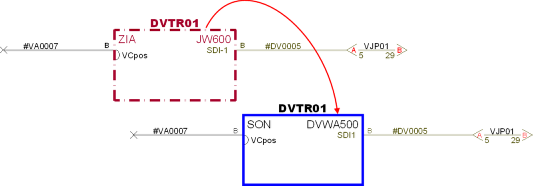

The Redline Equipment command is one of VidCAD's ReDoIt commands that allows users to globally update multiple drawings and the project database at the same time. Using Redline Equipment, users can globally replace one piece of equipment with another manufacturer and/or model. When equipment is redlined, all drawings are updated but the database is NOT. This is because the equipment has only been marked for change. The redlined equipment can be restored to its original state or accepted to make the change final.

The following procedure will show you how to restore redlined equipment back to its original state.

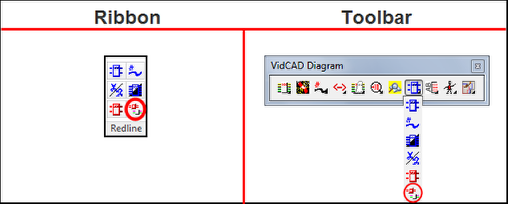

1.    Select “Accept-Restore Redlines” from the VidCAD Blueline-Redline ribbon or toolbar.

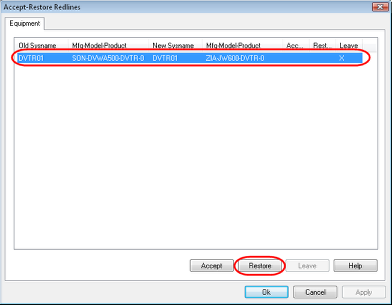

2.    The “Accept-Restore Redlines” window displays a list of all equipment that has been redlined. Select the equipment you want to restore from the list and click “Restore.”

3.    Select “Ok” in the Accept-Restore Redlines window to restore the block definition to its original state in all drawings.
