Phantom Terminator Transmutate

All terminators added to drawings in VidCAD are in Phantom mode regardless of Equipment Phantom Settings. After terminators are added to a drawing they can be transmutated to be included in the facility equipment database.

The following procedure will show you how to transmutate a terminator.

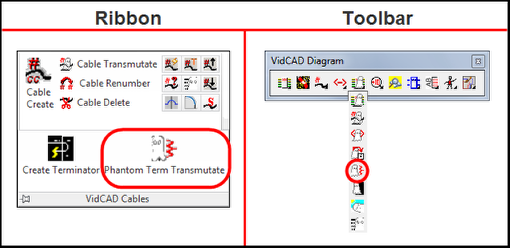

1.    Select “Phantom Terminator Transmutate” from the Cables ribbon or Phantom toolbar.

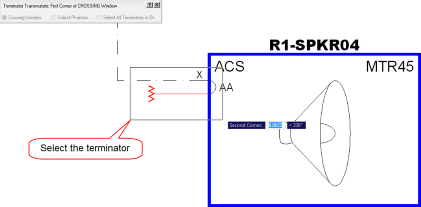

2.    The Terminator Transmutate window now displays and gives you three selection options. In this example we will use the default crossing window option, and select the phantom terminator with a window.

3.    The selected terminator is transmutated and will appear in the equipment list.
