Minimum Height

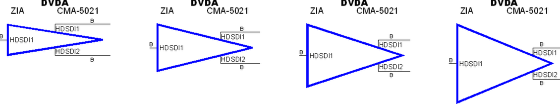

VidCAD will automatically control the block height based on the number of inputs and outputs selected. However, you can also set a minimum height for equipment that displays only a few inputs or outputs. The image below shows you the same DA with the same number of inputs and outputs, but with different Minimum Block Height settings. The first image has a minimum height of 4 (which is the minimum possible in VidCAD). The second has a minimum height of 6 (which is the default Minimum Height setting). The last two have a minimum setting of 8 and 10 respectively.

The following procedure will show you how to change the minimum DA height.

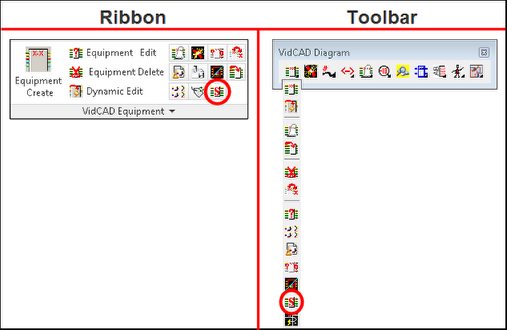

1.    Select “Equipment Settings” from the VidCAD Equipment ribbon or toolbar.

2.    Select “DA” from the FlexiBLOCK Settings area of the Diagram Equipment Settings window.

3.    Change the Min. Height field to your desired height.

4.    Select “Ok” and all future DA blocks added to this drawing will use this Minimum Height setting.
