Changing All Jack Symbols

VidCAD offers a wide variety of terminal symbols to allow you to customize your drawing style to your individual taste and needs. Using the Change Current Jack Style command, you can easily change the look of all jack symbols in your drawing at once.

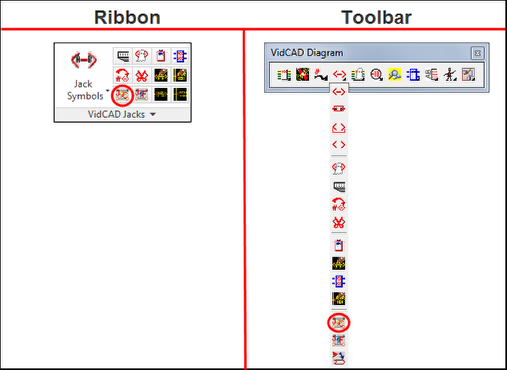

1.    Select “Change Current Jack Style” from the VidCAD Jacks ribbon or toolbar.

2.    From the Change current jack style window, select the style you wish to use, then select “Ok.”

3. All jack symbols in your drawing are now changed to the new style.
