Cable Number Down

VidCAD creates all cables with a default text height of 0.6 inches. After all cables have been added to a drawing you can easily increase or decrease the cable number text size. If the cable number text size has been increased using the Resize Cable# Up command, you can decrease the cable number size back to its default using the Resize Cable# Down command.

The following procedure will show you how to use the Resize Cable# Down command.

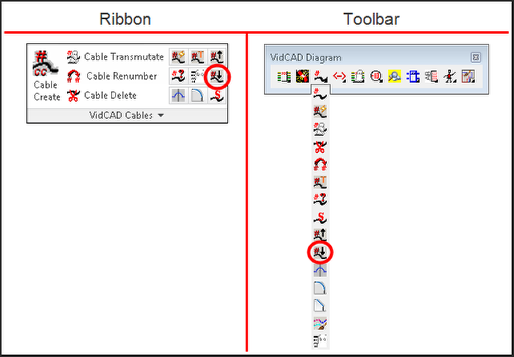

1.    Select “Resize Cable# Down” from the VidCAD Cables Ribbon or toolbar.

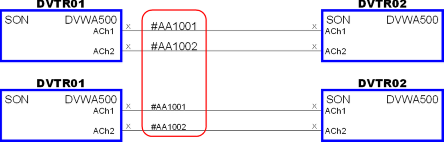

2.    All cable numbers in the drawing, for all signal types, are now resized down from 0.8 to 0.6 inches
