Cable Jump

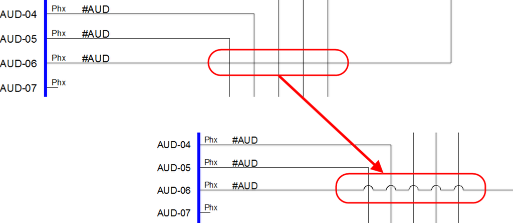

The Cable Jump command creates an arc at any intersecting VidCAD cable along the horizontal plane. Cable Jump will update all cable intersections in the entire drawing. This command is irreversable and the arc created does not move if the intersecting line does. With that in mind, we strongly recommend executing this command AFTER all cables are in place.

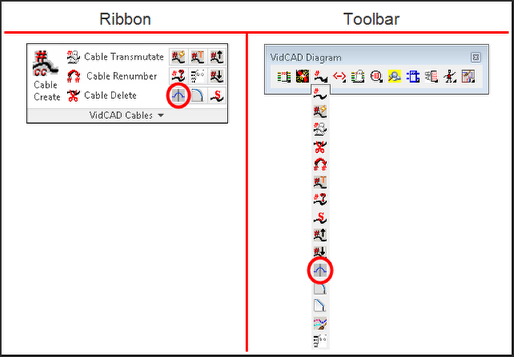

1. Select the "Cable Jump" command from the VidCAD Cables ribbon or toolbar.

2. Verify all VidCAD cable intersections now have a jump on them.
