Viewing the Cable Grid

Using Cable Grid you can view facility specific data about single and multicore cables as well as edit key data fields. The Cable Grid is opened from the VidCAD Main Menu.

The following procedure will show you how to open the Cable Grid.

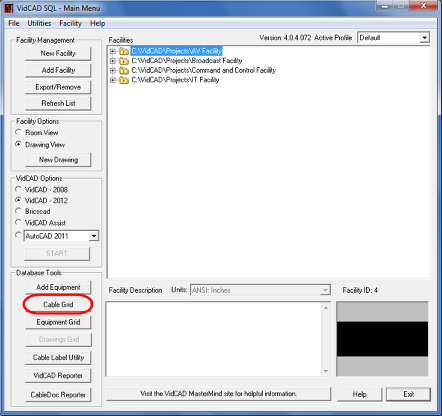

1.    Select a facility from the VidCAD Main Menu, then select “Cable Grid.”

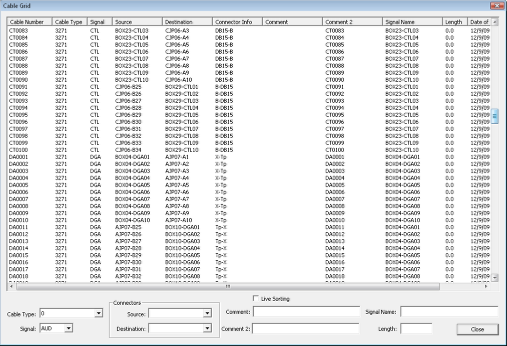

2.    The Cable Grid now opens and displays all of the cables in the facility selected.
